Distance extension device for HD-SDI (Repeater)
(HDSDI Repeater korea)

Ø Distance extension device for HD-SDI

(Repeater)

Ø Extending transmission distance over 200m

(HD:1.485G)/130m(Full HD:2.97G)

Ø Low infrastructure costs with easy

maintenance

- Distance extension device for HD-SDI (Repeater)

- Extending transmission distance over 200m (HD:1.485G)/130m

(Full HD:2.97G)

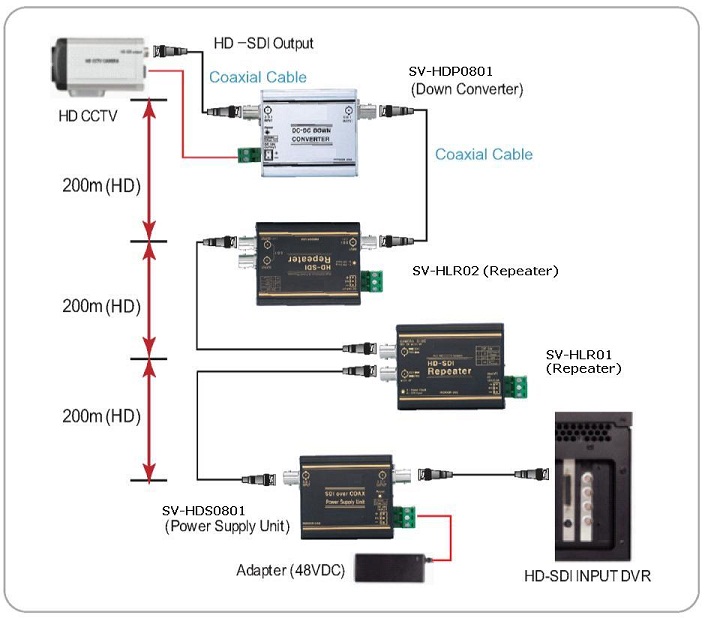

- Using SV-HDS0801(PSU) and SV-HDP0801(48V-12V converter) It is possible

to work itself and send to power to camera over coaxial cable. (Optional)

- Low infrastructure costs with easy maintenance

- Possible to extend the transmission distance of HD-SDI and power installing

more repeaters

MODEL		SV-HLR01/SV-HLR02
Video In/Out		HD-SDI
HD-SDI Out		Buffered Output(SV-HLR02:Dual out/ 1in 2out)
Power In		12V/500mA or Power over Coax (DC 48V 1.04A)
Max. Distance		130m (Full HD)/ 200m (HD) with RG-6
connect Port	SDI In	BNC-F
	SDI Out	BNC-F or BNC-F x2
	DIP SW	1	2	48V Out
		OFF	-	OFF
		ON	-	Loop Through
	Power Input	3Pin Terminal Normal
LED	SDI	Green Flickering: Normal
	Power	Yellow On: Normal / Flickering: Power Drop
Temperature / Humidity		-10°C~+40°C / 0~80%
Case body / Weight		Aluminum/120g
Dimension (mm)		75(W)x60(H)x25(D)
