7Brid DVR

Secu-Vision DVRs do support various types of camera image transmission formates as shown below

  • EX-SDI
  • HD-SDI
  • TVI
  • AVI
  • CVI
  • 960H
  • IP

Supporting camera input list

Supporting camera input list
Camera input resolution Camera Pixel
EX-SDI 1280 x 720, 1920 x 1080, 2560 x 1440, 4096 x 2160 720P, 2MP, 4MP, 8MP
HD-SDI 1280 x 720, 1920 x 1080, 2560 x 1440, 4096 x 2160 720P, 2MP, 4MP, 8MP
CVI 1280 x 1080 2MP
TVI 1920 x 1080, 2048 x 1526, 2560 x 1440 2MP, 3MP, 4MP
960H 960 x 480 960H
AVI 1280 x 1080, 2048 x 1536, 2560 x 1440 2MP, 3MP, 4MP
IP 920 x 1080, 2048 x 1536, 2560 x 1440, 4096 x 2160 2MP, 3MP, 4MP, 8MP

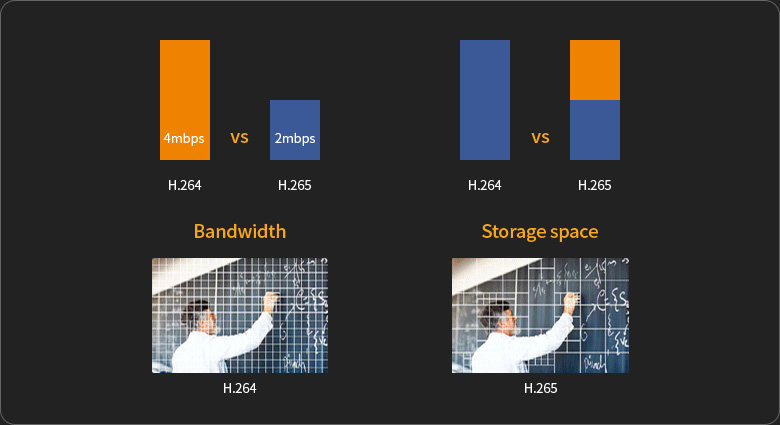

H.265 Codec

H.265 is the next-generation video compression format that is twice efficient as H.264.
H.265 has the following benefits.

H.264 vs H.265
H.264   vs   H.265
H.264 1080P H.265 1080P
Bitrate 4Mbps 2Mbps
1CH required storage
space per month		 4*8*3600*24*30*10
24*1024 = 1.24TB		 2*8*3600*24*30810
24*1024 = 0.62TB
100CH per month 124TB 62TB

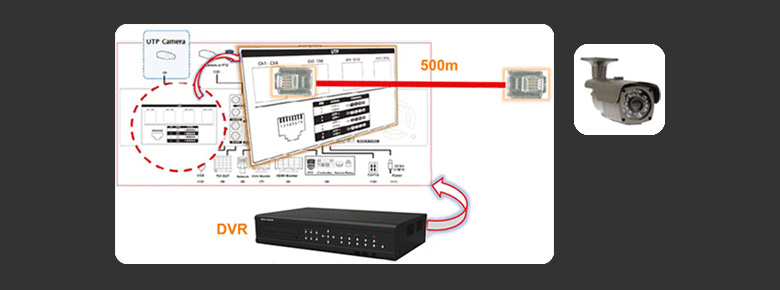

UTP DVR

  • · Be capable of transmitting over long distance as signal interference is than coaxial cable.
  • · Easy to install - Easily bendable and thin cables
  • · Low installation cost

Marine DVR

· Variety of uses

  • · Recording all actions on deck when fishing. sailing. cruising
  • · Prevent accidents from and spot(Stern section. Engine room)
  • · Assist to maneuver and dock.
  • · Keep as an emdence for marine accidents

· Key features

  • · Anti - Vibration moisture/damp ingress corrosion UV
  • · GPS for time correction
  • · SSD adoption for storage medium
  • · All-in-One monitor type for saving space

UPS DVR

Key Features

  • · Built-in UPS
  • · 4BNC Input / Lite Case
  • · Keep recording 10 min. when black out, power failure occurred
  • · Affordable cost / for SOHO
  • · Additional accessories : UPS BOX for UPS function of camera
  • · Used non-explosive safe battery

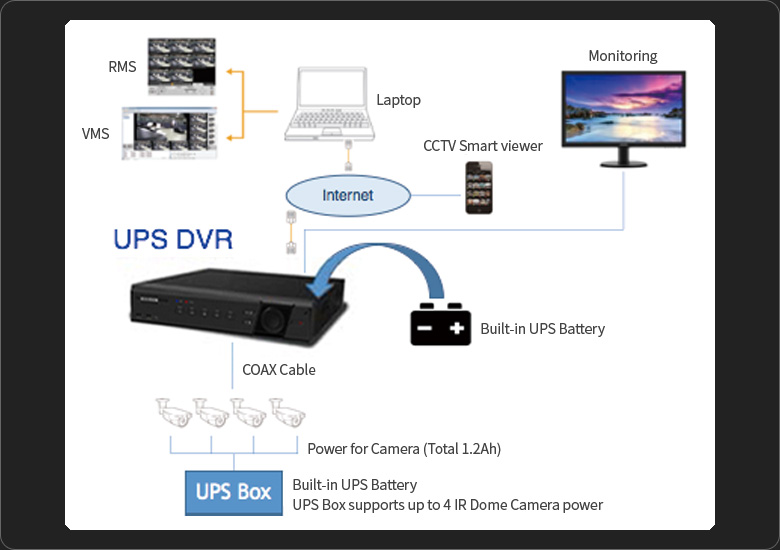

System configuration
